LJ-600 type fully automatic continuous interlocking brick machine cantilever type
Product features:
1. This series of products is suitable for dividing tiles and stone into the required rectangular bricks, square bricks, diamond bricks, etc
2. Processing width 23-600 (800) mm
3. It can divide bricks of different widths at one time, and the and triple sets of knives can also be pre-cut and then cut off
4. Equipped with a homemade pressure plate can cut 10×10mm mosaic
5. Since this machine uses a dovetail slot for lifting, the cantilever structure makes it easier to load and unload

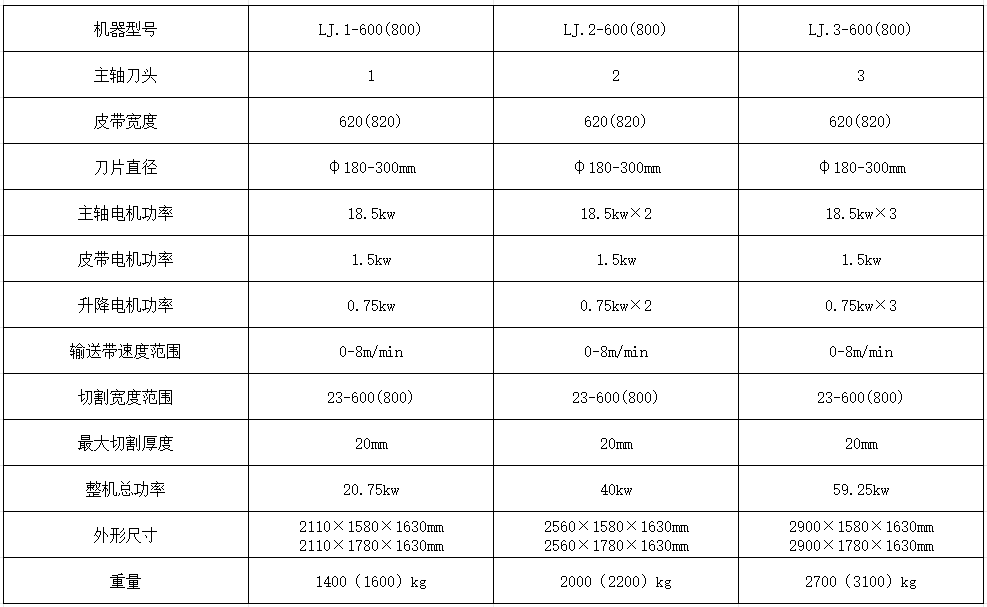

- Parameters
Product features:
1. This series of products is suitable for dividing tiles and stone into the required rectangular bricks, square bricks, diamond bricks, etc
2. Processing width 23-600 (800) mm
3. It can divide bricks of different widths at one time, and the and triple sets of knives can also be pre-cut and then cut off
4. Equipped with a homemade pressure plate can cut 10×10mm mosaic
5. Since this machine uses a dovetail slot for lifting, the cantilever structure makes it easier to load and unload
LJ-1/600(800) Single Group Blade Continuous Interbrick Machine (Cantilever)
Main Application:
This series of products is suitable for the division of floor tiles, stone materials, or the required rectangular bricks, square bricks, diamond bricks,., which can process bricks of different widths at one time. Processing width 22—600(800)mm. Equipped with a homemade pressure plate cut 10×10 mosaics. Due to the reasonable design of this machine, the mechanical processing accuracy is high, so it has the characteristics of high cutting efficiency high precision, and high output.
Performance Features:
▲ The bearing seat of the spindle box adopts engine oil lubrication and an external water cooling device, so does not heat up or reach high temperatures during continuous long-term use, extending the service life of the bearings.
▲ 'V' belt guide ensures precise belt transportation.
▲ Dovetail slot lifting, cantilever structure. Loading and unloading is more convenient.
LJ-2/600(80) Double Group Blade Continuous Interbrick Machine (Cantilever Type)
Main Application:
This series of products is suitable for the division of floor tiles stone materials, or the required rectangular bricks, square bricks, diamond bricks, etc., with a processing width of 25—600(800)mm which can divide bricks of different widths at one time, or can be pre-cut and then cut off. This process can make the output even greater without damage.
Performance:
▲ The bearing seat of the spindle box adopts engine oil lubrication and an external water cooling device, so it does not heat up or reach high temperatures during continuous-term use, extending the service life of the bearings.
▲ 'V' belt guide ensures precise belt transportation.
▲ When the main shaft is used at the time, the cutting speed is increased and the damage is reduced.
▲ Dovetail slot lifting, cantilever structure. Loading and unloading is more convenient
